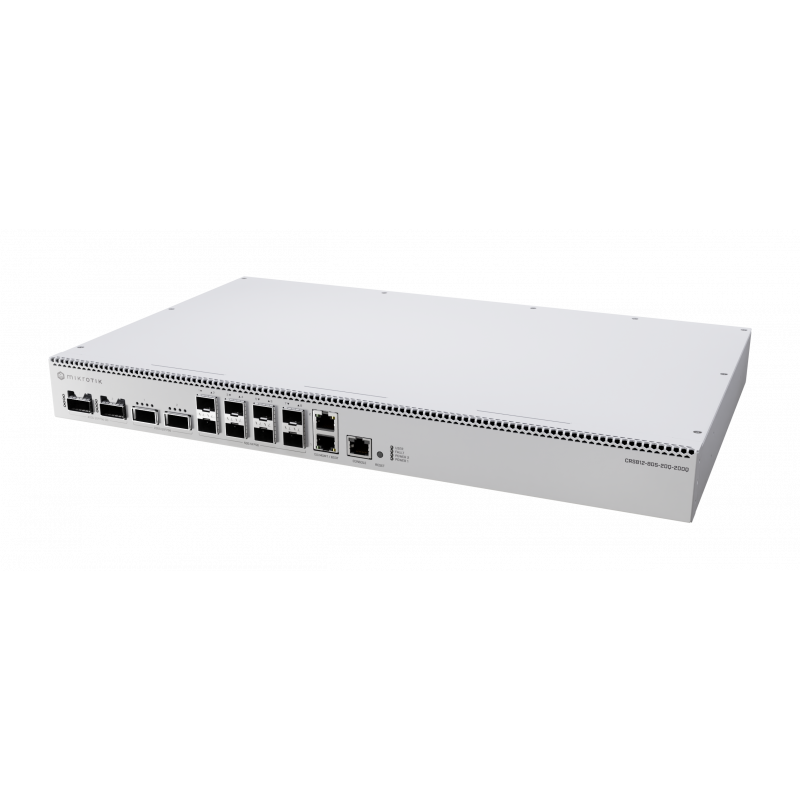

The CRS812-8DS-2DQ-2DDQ-RM is a Cloud Router Switch series router designed to deliver high performance and flexibility for data networks. It features 8 SFP+ ports for fiber optic connections, 2 QSFP+ ports for high-speed connections, and 2 QSFP28 ports for even faster connections. This model is ideal for environments where high data processing capacity is required.
The router supports a variety of routing and switching protocols, making it versatile for different network configurations. It is also designed to be rack-mounted, facilitating its integration into existing infrastructures.
Data sheet
- Max. Power Consumption
- 134 W
- Certifications
- CE, EAC, ROHS
- Product Code
- CRS812-8DS-2DQ-2DDQ-RM
- CPU Nominal Frequency
- 2000 MHz
- CPU Core count
- 4
- Size of RAM
- 4 GB
- Voltage Monitor
- Yes
- PCB Temperature Monitor
- Yes
- License Level
- 6
- CPU
- AL52400
- Wireless Chip Model
- 20
- Integrated Storage Size
- 512 MB
- Architecture
- ARM 64bit
- CPU Temperature Monitor
- Yes
- Operating Temperature
- -10°C to 50°C
- Storage type
- NAND
- Max power consumption without attachments
- 81 W
- Number of AC inputs
- 2
- AC input range
- 100-240
- Number of 1G/2.5G/5G/10G Ethernet ports
- 2 (supported: 10M/100M/1G/10G)
- MTBF
- Approximately 200'000 hours at 25C
- Serial console port
- RJ45
- Cooling type
- 4 fans
- Switch chip model
- 98DX7335
- Number of PSU slots
- 2
- Frequency (Hz)
- 50-60
- Number of 50G SFP56 ports
- 8
- Number of 200G QSFP56 ports
- 2
- Number of 400G QSFP56-DD ports
- 2
The technical data are taken from the manufacturer's website the day of the upload on our shop. For more complete and up-to-date information, consult directly the manufacturer's website.
