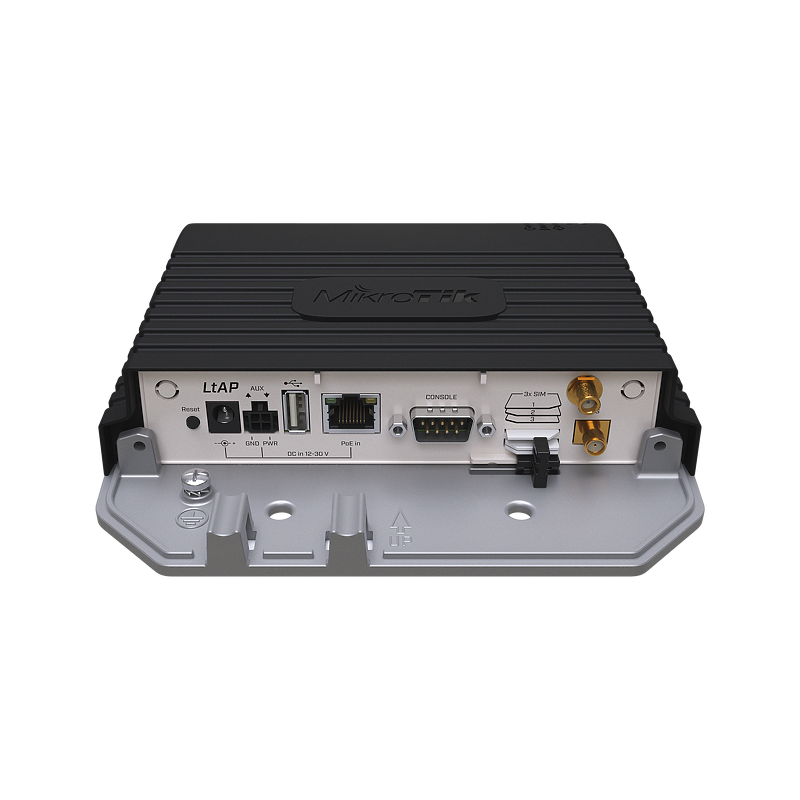

The LtAP LR8G LTE6 kit (SKU: LtAP-2HnD&FG621-EA&LR8G) is an advanced LTE access point designed for mobile and remote applications. It integrates an LTE cat 6 module for download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps. The access point supports dual-band Wi-Fi (2.4 GHz and 5 GHz) for reliable and high-performance wireless connectivity.
The kit also includes a GPS module for precise device tracking and location. It is equipped with an Ethernet port for wired connectivity and an integrated power supply for easy installation. The LtAP LR8G LTE6 is ideal for applications requiring reliable and fast Internet connectivity, such as moving vehicles, temporary sites, and remote areas.
Data sheet
- 10/100/1000 Ethernet Ports
- 1
- PoE in
- Passive PoE
- Max. Power Consumption
- 24 W
- Certifications
- CE, EAC, ROHS
- Product Code
- LtAP-2HnD&FG621-EA&LR8G
- CPU Nominal Frequency
- 880 MHz
- CPU Core count
- 2
- Size of RAM
- 128 MB
- Voltage Monitor
- Yes
- PCB Temperature Monitor
- Yes
- Operating System
- RouterOS v7
- License Level
- 4
- CPU
- MT7621AT
- Wireless Chip Model
- X0
- Integrated Storage Size
- 16 MB
- Architecture
- MMIPS
- MiniPCI-e Slots
- 2
- Operating Temperature
- -40°C to 70°C
- 2.4 GHz Antenna Gain
- 2.5
- Supply Voltage Range
- 12-30 V
- Number of DC inputs
- 3 (DC jack, PoE-IN, Automotive)
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Wireless 2.4 GHz chip model
- AR9342
- Storage type
- FLASH
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Max power consumption without attachments
- 86335904
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- DC jack input Voltage
- 12-30 V
- Automotive input Voltage
- 12-27 V
- 3G Category
- R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
- LTE Category
- 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD bands
- 1 (2100MHz)
- LTE TDD bands
- 38 (2600MHz)
- Number of SIM slots
- 3 Modem (Mini SIM)
- CPU Threads count
- 4
- USB Port
- 1
- Wireless 2.4 GHz generation
- Wi-Fi 4
- 3G bands
- 1 (2100MHz)
- MTBF
- Approximately 200'000 hours at 25C
- Serial console port
- RS232
- Cooling type
- Passive
- GNSS standards
- GPS
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- Wireless 2.4 GHz number of chains
- 2
The technical data are taken from the manufacturer's website the day of the upload on our shop. For more complete and up-to-date information, consult directly the manufacturer's website.
