• New

U7 Mesh

U7-Mesh
0
€164.58 Tax excluded
Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.
Contact us

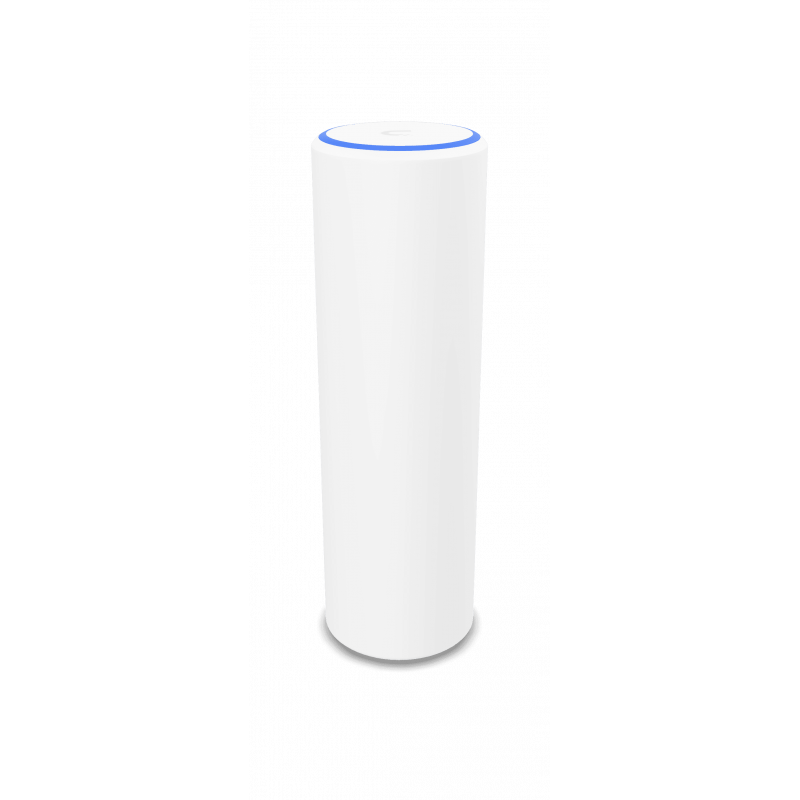

U7 Mesh (U7-Mesh) is a compact indoor/outdoor UniFi WiFi 7 access point with an integrated long-range antenna system.

Key specs

  • WiFi: WiFi 7 (dual-band 2.4 GHz + 5 GHz), 4 spatial streams
  • Max PHY data rates: 5 GHz up to 4.3 Gbps (BW240), 2.4 GHz up to 688 Mbps (BW40)
  • Uplink: (1) 2.5 GbE RJ45
  • Power: PoE, 42.5–57 V DC, max 13 W (PoE adapter included)
  • Coverage/clients: up to 140 m² coverage area, 200+ clients
  • Outdoor rating: IPX6 when installed with the outdoor mount
  • Mounting: wall, pole, or table stand (mounts included)

Radio details

  • MIMO: 2×2 DL/UL MU-MIMO on 2.4 GHz and 5 GHz
  • Antenna gain: 2.4 GHz 3 dBi; 5 GHz omnidirectional 6 dBi / directional 10 dBi
  • Max TX power: 2.4 GHz 23 dBm; 5 GHz 24 dBm

Software requirements

  • UniFi Network application v10.1.85+
  • UniFi mobile app: iOS v10.32.1+ / Android v10.35.1+

Data sheet

Dimensions
48.5×159.5 mm
Weight
313 g
Band
2.4+5 GHz
Max. Power Consumption
13 W
Power Supply Voltage & Current
48 V, 0.32 A
Certifications
CE,FCC,IC
Power Method
PoE
WiFi Standards
802.11be/ax/ac/n
Max. Output Power
2.4:23 dBm;5:24 dBm
System LEd
W/B
Networking Interface
1
Material
Polycarbonate (UV)
Mounting Options
Mur/poteau/table
Operating Temperature
-30–60 °C
Operating Humidity
5–95 %
IP Certification
IPX6
MIMO 5 GHz
2×2
Antenna gain dBi for 2.4 GHz/5 GHz
2.4:3 dBi;5:6/10 dBi
Wi-Fi generation
WiFi 7
10/100/1000/2500 Mbps Ethernet ports
1
6 GHz Max. data rate
4.3 Gb/s
RJ45 Datarate
2.5 GbE
Supported Voltage Range
42.5–57 V DC
Coverage Area
140 m²
Simultaneous Users Connected
200+

The technical data are taken from the manufacturer's website the day of the upload on our shop. For more complete and up-to-date information, consult directly the manufacturer's website.
