• New

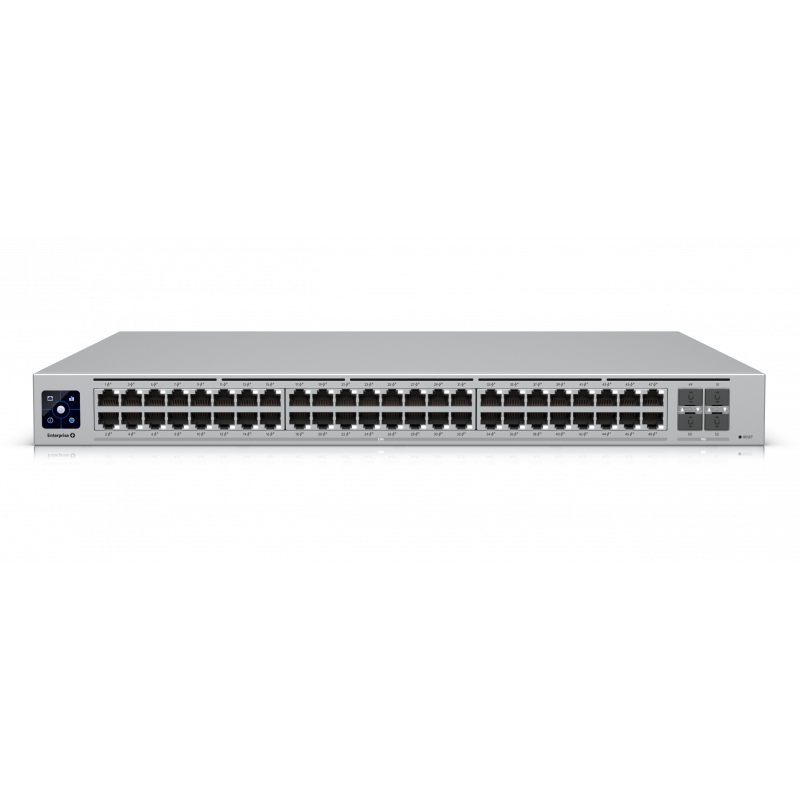

Switch Enterprise 48 PoE

USW-Enterprise-48-PoE
0
25
€1,338.63 Tax excluded

A 48-port, Layer 3 switch with 2.5 GbE PoE+ output and 4× 10G SFP+ uplinks. Total PoE budget: 720 W. Not compatible with the PoE++ requirements of U7 and E7 access points.

Quantity

Switch Enterprise 48 PoE is a 48-port Layer 3 managed switch designed for multi-gig deployments, providing PoE+ power over 2.5 GbE copper ports and 10G SFP+ uplinks.

  • 48 × 2.5 GbE RJ45 ports (PoE+)
  • 4 × 10G SFP+ uplink ports (10G/1G)
  • Total PoE availability: 720 W (up to 32 W per port)
  • Switching capacity: 320 Gbps; non-blocking throughput: 160 Gbps
  • Rack-mount 1U form factor; integrated 1.3" touchscreen display
  • Power: universal 100–240 V AC input; supports USP RPS DC backup input

Compatibility note: not compatible with the PoE++ requirements of U7 and E7 access points.

Data sheet

Dimensions
442×400×44mm
Weight
6.2kg
Weight (with mount)
6.3kg
Max. Power Consumption
150W
Certifications
CE,FCC,IC,Anatel
Power Method
AC+USP RPS DC
Product Code
USW-Enterprise-48-PoE
PoE Type
PoE+
SFP+ Ports
4
Operating Temperature
-5..40°C
Operating Humidity
10-90%
Max. PoE Wattage Per Port
32W
Max. PoE Wattage on All Ports
720W
Non-Blocking Flow
160Gbps
Switching Capacity
320Gbps
MAC Address Table
32000
Maximum VLANs
1000
Services
SMB L3 PoE switch
PoE-out ports
48
Management interface
Ethernet
10/100/1000/2500 Mbps Ethernet ports
48
LCM Display
1.3in
Supported Voltage Range
100-240VAC

Download

Fiche technique
(2.01M)

The technical data are taken from the manufacturer's website the day of the upload on our shop. For more complete and up-to-date information, consult directly the manufacturer's website.
