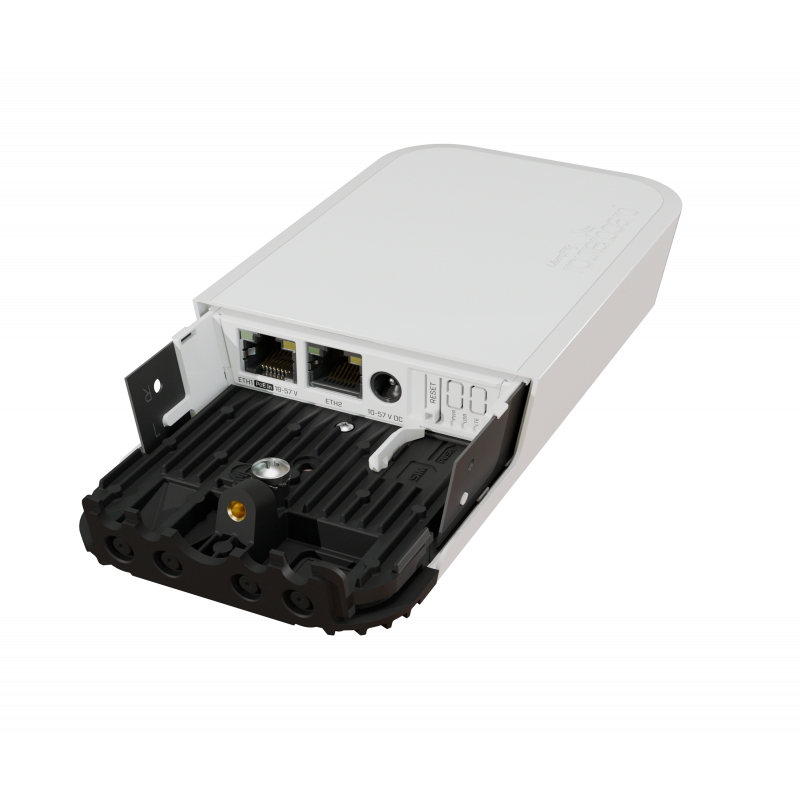

The wAP ac LTE kit (2024) is an outdoor wireless access point equipped with LTE and Wi-Fi 5 (802.11ac) technology. It features two Ethernet ports for wired connectivity, a PoE power supply for simplified installation, and an integrated antenna for optimal coverage. This kit is ideal for extended networks and outdoor environments, offering reliable performance and flexible installation.
Technical specifications:
- Wi-Fi 5 (802.11ac)
- Two Ethernet ports
- PoE power supply
- Integrated antenna
- Ideal for extended networks and outdoor environments
Data sheet
- 10/100/1000 Ethernet Ports
- 2
- PoE in
- 802.3af/at
- Max. Power Consumption
- 12 W
- Certifications
- CE, E-MARK, EAC, ROHS
- Product Code
- wAPGR-5HacD2HnD&EC200A-EU
- CPU Nominal Frequency
- auto MHz
- CPU Core count
- 4
- Size of RAM
- 128 MB
- Voltage Monitor
- Yes
- PCB Temperature Monitor
- Yes
- License Level
- 4
- CPU
- IPQ-4018
- Wireless Chip Model
- 54
- Integrated Storage Size
- 16 MB
- Architecture
- ARM 32bit
- MiniPCI-e Slots
- 1
- Operating Temperature
- -30°C to 60°C
- 2.4 GHz Antenna Gain
- 2.5
- 5 GHz Antenna Gain
- 2.5
- Supply Voltage Range
- 18-57 V
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- MIMO 2,4 GHz
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Wireless 2.4 GHz chip model
- IPQ-4018
- MIMO 5 GHz
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac
- Wireless 5 GHz chip model
- IPQ-4018
- Storage type
- FLASH
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Max power consumption without attachments
- 86314105
- Wireless 5 GHz Max data rate
- 867 Mbit/s
- DC jack input Voltage
- 10-57 V
- 2G Category
- Class12
- 3G Category
- R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- LTE Category
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands
- 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
- LTE TDD bands
- 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
- Number of SIM slots
- 1 Modem (Micro SIM)
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Wireless 5 GHz generation
- Wi-Fi 5
- 2G bands
- 8 (900MHz) / 3 (1800MHz)
- 3G bands
- 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
- MTBF
- Approximately 200'000 hours at 25C
- Cooling type
- Passive
- Switch chip model
- IPQ-4018
Specific References
- ean13
- 4752224009241
The technical data are taken from the manufacturer's website the day of the upload on our shop. For more complete and up-to-date information, consult directly the manufacturer's website.
The wAP ac LTE kit (2024) is an outdoor wireless access point with LTE, Wi-Fi 5 (802.11ac), two Ethernet ports, PoE power supply, and integrated antenna. Ideal for extended networks and outdoor environments.
