LoRaWAN sensor tag TG-LR82

Reference: TG-LR82

A configurable LoRaWAN sensor tag: a flexible and cost-effective tool to gather data and make informed operational decisions. Monitor temperature, humidity, motion and events with a configurable LoRaWAN sensor tag designed for demanding IoT deployments.

Product	Stock Immediate	Stock 5/7 days	Price
Packing: Unit Reference: TG-LR82	Stock Immediate 1	Stock 5/7 days 539	Price €19.67 Tax excluded
Packing: By 20 Reference: TG-LR82-BOX20	Stock Immediate 0	Stock 5/7 days 26	Price -	Contact us

Caution: The quantities available in carton depend on the quantities available per unit.

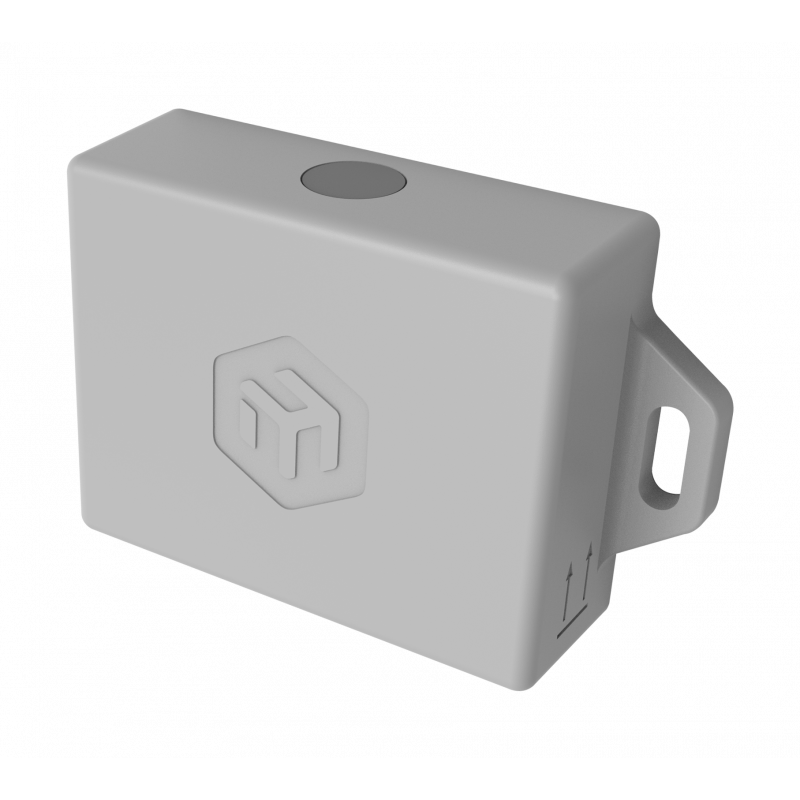

TG-LR82 – configurable LoRaWAN sensor tag

TG-LR82 is a configurable LoRaWAN sensor tag for demanding IoT deployments. It can monitor temperature, humidity, motion/tilt and events, and can apply event-based rules and flexible reporting profiles.

Key features

IP67-rated enclosure, suitable for outdoor deployments
Magnetic reed switch support (doors/lids/cabinets)
Local processing (averages / histograms before sending telemetry)
Dual-band LoRa support: sub-GHz (EU868) and 2.4 GHz LoRa
Works with common monitoring stacks (e.g., Grafana)

Technical highlights

Product code: TG-LR82
LoRaWAN: LoRaWAN 1.0.4 Class A/B
LoRa transceiver: LR1120
Operating frequencies: 863–870 MHz and 2400–2483.5 MHz
RF transmit power: 10.5 dBm (868 MHz), 13 dBm (2.4 GHz)
RF receive sensitivity: -141 dBm (868 MHz), -130 dBm (2.4 GHz)
Antenna gain: -4 dBi (868 MHz), 2 dBi (2.4 GHz)
Sensors: temperature (TMP116N), humidity (HDC2010), accelerometer (LIS2DW12)
Battery: 1100 mAh LiMnO2 (non-replaceable), expected lifetime ~5 years (configuration dependent)
Dimensions: 76 × 45 × 19 mm
Tested ambient temperature: -10 °C to 70 °C
Certifications: CE, EAC, RoHS

Included in the box

Mounting bracket
Screw set

Data sheet

Dimensions: 76x45x19 mm
Band: 868 MHz; 2.4 GHz
Certifications: CE,EAC,RoHS
Max. Output Power: 13 dBm
Product Code: TG-LR82
Operating Frequency: 863-870 MHz; 2400-2483.5 MHz
Wireless Standards: LoRaWAN 1.0.4
Wireless Chip Model: LR1120
Distance: ~1.5 km
Operating Temperature: -10..70 °C
Software Features: ADR
IP Certification: IP67
Battery Type: 1100 mAh
Included accessories: Mounting bracket; screws
MTBF: 100000 h
Gain: 2 dBi
Can be used outdoors: Yes
Expected battery lifetime: ~5 years
Sensors: TMP116N,HDC2010,LIS2DW12
Humidity sensor range: 0-100 %RH
Temperature sensor accuracy: ±0.3 °C
LoRa Region: EU868
RF Receive sensitivity: -141 dBm

Download

Brochure

(2.54M)

Déclaration de conformité

(259.72k)

The technical data are taken from the manufacturer's website the day of the upload on our shop. For more complete and up-to-date information, consult directly the manufacturer's website.
