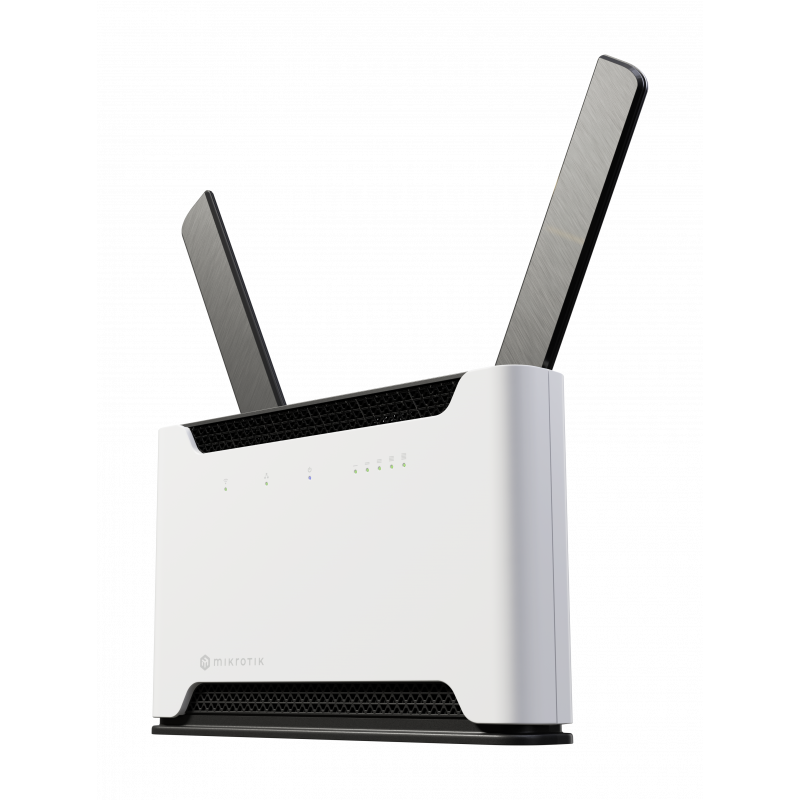

MikroTik Chateau 5G R17 ax S53UG+5HaxD2HaxD-TC&RG650E-EU

Fiche technique

Ports ethernet 10/100/1000

4

Consommation maximale

27 W

Certifications

CE, EAC, ROHS

Code produit

S53UG+5HaxD2HaxD-TC&RG650E-EU

Fréquence CPU nominale

864-1800 MHz

Nombre de coeurs CPU

4

Taille de la RAM

1 GB

Monitoring de tension

Yes

Monitoring de température du PCB

Yes

Licence

4

CPU

IPQ-6010

Chipset wireless

20

Taille du stockage

128 MB

Architecture

ARM 64bit

Monitoring de température CPU

Yes

Température de fonctionnement

-40°C to 70°C

Gain d'antenne WiFi 2.4 GHz

3

Gain d'antenne WiFi 5 GHz

6

Entrée(s) DC

1 (DC jack)

Standards WiFi 2.4 GHz

802.11b/g/n/ax

Chipset WiFi 2.4 GHz

QCN-5022

Standards WiFi 5 GHz

802.11a/n/ac/ax

Chipset WiFi 5 GHz

QCN-5052

Type de stockage

NAND

Wireless 2.4 GHz Max data rate

574 Mbit/s

Consommation max. (sans accessoires)

86896506

Wireless 5 GHz Max data rate

1200 Mbit/s

USB Power Reset

Yes

USB slot type

USB type A

Max USB current (A)

1.5

DC jack input Voltage

12-28 V

3G Category

R8 (42.2Mbps Downlink, 5.76Mbps Uplink)

LTE Category

20 (2.0 Gbps Downlink, 211 Mbps Uplink)

LTE FDD bands

1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)

LTE TDD bands

38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz) / 40 (2300MHz) / 43 (3700MHz)

Modem/SIM

1 Modem (Micro SIM)

Mode button

Yes

Port USB

1

Wireless 2.4 GHz generation

Wi-Fi 6

Wireless 5 GHz generation

Wi-Fi 6

3G bands

1 (2100MHz) / 5 (850MHz) / 8 (900MHz)

MTBF

Approximately 200'000 hours at 25C

Number of 2.5G Ethernet ports

1

IPsec hardware acceleration

Yes

Cooling type

Passive

MIMO DL

4x4

MIMO UL

1x1 (5G SA MIMO UL 2x2)

5G NSA FDD bands

1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)

5G NSA TDD bands

38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)

5G SA FDD bands

1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)

5G SA TDD bands

38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)

Switch chip model

IPQ-6010

Wireless 2.4 GHz number of chains

2

Wireless 5 GHz number of chains

2

eSIM

Yes
